PRESSURE REDUCING REGULATORS

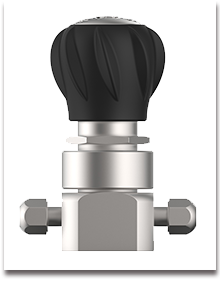

81

● Suitable for gas and liquid, widely used in gas purge system, process control, petrochemical industry and other fields.

● Single-stage pressure reduction, metal diaphragm sensing mechanism, the output pressure constant;

● Maximum input pressure: 1500 psig (103bar)

● Output pressure: 0-15,0-36,0-75,0-125 psig (0-1, 0-2.5, 0-5.2, 0-8.6 bar)

● Pressure tested to 1.5 times the maximum input pressure;

● Operating temperature: -23℃ ~ 74℃

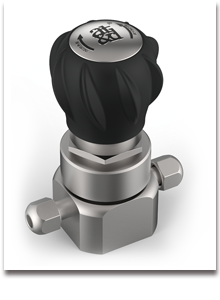

82

● Suitable for gas and liquid, widely used in gas purge system, process control, petrochemical industry and other fields.

● Single-stage pressure reduction, metal diaphragm sensing mechanism, ensures the output pressure is constant;

● Maximum input pressure: 3000psig (207bar)

● Output pressure: 0-36,0-75,0-150,0-250 psig (0-2.5,0-5.2,0-10.3,0-17.2bar)

● Pressure tested to 1.5 times the maximum input pressure;

● Operating temperature: -23℃ ~ 74℃

● Cv value: 1.0 ● Weight: 1.6kg

● Thread: inlet and outlet 1/2NPT female thread, pressure gauge connection 1/4NPT female thread;

● Panel or bottom wall mounting

● Applicable to gas and liquid, widely used in test and test gas, general industrial gases, all kinds of standard gases, laboratory, analysis and testing instruments, petrochemical industry and other fields.

83

● Suitable for gas and liquid, widely used in gas purge system, process control, petrochemical industry and other fields.

● Single-stage pressure reduction, metal diaphragm sensing mechanism, ensures the output pressure is constant;

● Maximum input pressure: 3000psig (207bar)

● Output pressure: 0-36,0-75,0-150,0-250 psig (0-2.5,0-5.2,0-10.3,0-17.2bar)

● Pressure tested to 1.5 times the maximum input pressure;

● Operating temperature: -23℃ ~ 74℃

● Cv value: 1.0

● Thread: inlet and outlet 1/2NPT female thread, pressure gauge connection 1/4NPT female thread;

● Panel or bottom wall mounting;

● Weight: 1.6kg

A control device that reduces the input pressure of a gas or liquid to a required lower value.

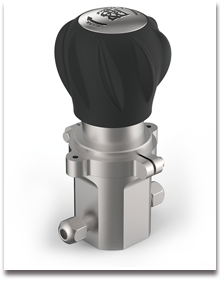

88

● Suitable for gas and liquid, widely used in laboratories, analytical instruments, process control, petrochemical industry and other fields.

● Safe and precise piston-type pressure reduction, suitable for high output pressure requirements;

● Maximum input pressure: 6000 psig (413bar)

● Output pressure: 0-250,0-500,0-1000,0-1500,0-3000psig (0-17.2,0-34.5,0-69,0-103,0-207bar);

● Pressure tested to 1.5 times the maximum input pressure;

● Operating temperature: -23℃ ~ 74℃

● Cv value: 0.06 or 0.24

● Thread: inlet and outlet 1/4NPT female thread, pressure gauge connection 1/4NPT female thread;

● Panel or bottom wall mounting;

● Weight: 0.9k

K84

● Suitable for gas and liquid, widely used in laboratories, analytical instruments, process control, petrochemical industry and other fields.

● Safe and precise piston-type pressure reduction, suitable for high output pressure requirements;

● Maximum input pressure: 10000 psig (690bar)

● Output pressure: 0-500, 0-800, 10-1500, 15-2500, 25-4000, 50-6000 psig (0-34.5, 0-55.2, 0.68-103, 1.03-172, 1.72-276, 3.45-413 bar)

● Pressure tested to 1.5 times the maximum input pressure;

● Accuracy: ± 1% of set pressure;

● Operating temperature: -23℃ ~ 74℃

● Cv value: 0.06

● Thread: inlet and outlet 1/4NPT female thread, pressure gauge connection 1/4NPT female thread;

● panel mounting;

● Weight: 1.6kg

● Suitable for gas and liquid, widely used in laboratories, analytical instruments, process control, petrochemical industry and other fields.

● Safe and precise piston-type pressure reduction, suitable for high output pressure requirements;

● Maximum input pressure: 10000 psig (690bar)

Weld Fittings

● Output pressure: 0-500, 0-800, 10-1500, 15-2500, 25-4000, 50-6000 psig (0-34.5,0-55.2,0.68-103,1.03-172,1.72-276,3.45-413 bar)

● Pressure tested to 1.5 times the maximum input pressure;

● Accuracy: ± 1% of set pressure;

● Operating temperature: -23℃ ~ 230℃

● Panel mounting;

● Weight: 1.6kg
