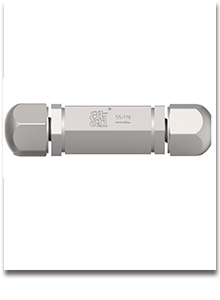

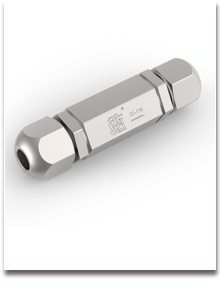

CHECK VALVES

● Suitable for gas and liquid, widely used in a variety of fluid systems;

● 11 series the maximum operating pressure is up to 3000 psig (207bar);

● 12 series (1 / 4in. Diameter below) the maximum operating pressure is up to 6000 psig (413bar);

Control the directional flow of a fluid, preventing backflow.

● Cracking pressure is not adjustable, various cracking pressure options: 0.05bar, 0.08bar, 0.34bar, 0.68bar, 1.7bar;

● Available in sizes from 1 / 16in. To 1 / 2in.; 2mm to 14mm Tube Fitting and threaded connections.
